How to identify a single phase or 3-phase power supply

Don’t worry, you’re not alone. If you don’t work with electricity, knowing the difference between a single phase or 3-phase power supply is not something you’re expected to know. Rest assured that 95% of people also shopping for a solar energy system, unless advised, wouldn’t know either. Considering many homes are configured differently, there will always be completely different ways of identifying a single phase or 3-phase electricity supply. Listed below are six different (simplified) methods to determine whether you have single phase or 3-phase power supplying your home.

Contents

1: It's Written

Try to locate your electricity supply meter. More often than not, it’s written on the face of the meter. The below image is an example of “SINGLE PHASE” written on the meter face, which tends to get a little lost in the surrounding text; see if you can spot it. Consider though, what is written may vary on your meter. Here are some examples of what may appear:

Single-Phase text variations: Single Phase, Mono-phase, 1-Phase.

Three-phase text variations: Tri-Phase, Polyphase. 3-Phase.

Single Phase or 3-phase electricity Supply - Solar Review

2: Phone Call

Without getting over technical and to save you the effort of looking at your electrical switchboard, there is someone who will know instantly—your electricity supply company. The good news, they’re only a phone call away and free to ask. For ease of reference, ensure you have a copy of your latest electricity bill on hand, containing all the information required to verify your account details.

Single phase or 3-phase power - Phone Call - Solar Review

3: Switchboard Visual Assessment

The electrical switchboard visual assessment is often an ideal way to identify a single-phase or 3-phase power supply. What you need to identify is the MAIN SWITCH. In most instances, the main switch will either be what is referred to as 1-pole wide or 3-pole wide. If your Main Switch is 1-pole wide, you have a single-phase power supply. Alternatively, if your Main Switch is 3-poles wide, you have a 3-phase power supply.

Tip: A “pole” is often similar in size to a finger width or approximately 18mm. As a guide, three poles resemble three fingers together or approximately 54mm.

Thinking of going solar in the Perth and Bunbury region? Try our hassle-free express solar quote as a comparison.

4: Service Fuse Identification

Service fuse identification is potentially the most straightforward visual assessment, if available. The fact is that many service fuses are not always conveniently located below the electricity meter. Therefore, this method may not be ideal. Below are some examples of a single phase or 3-phase service fuse identification.

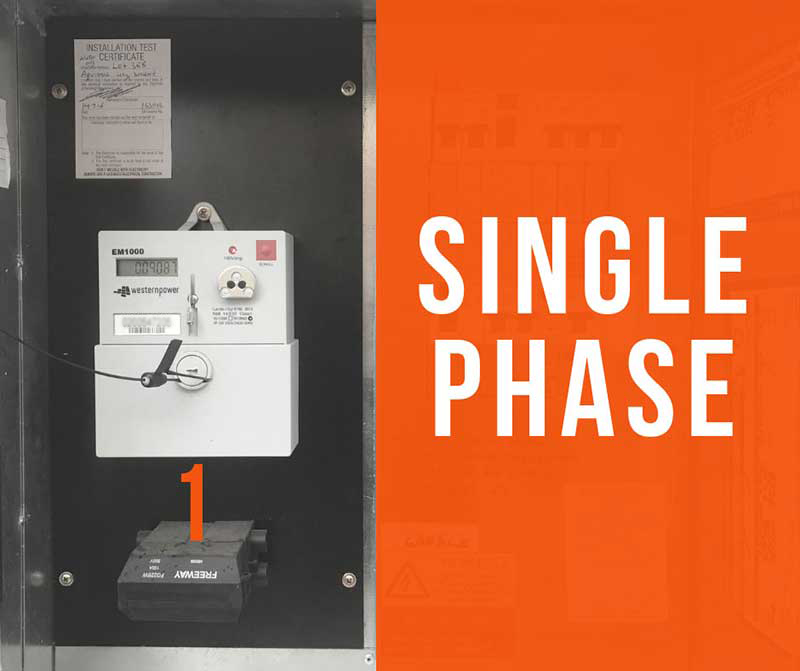

Single Phase - Solar Review

Image: Single-Phase supply fuse.

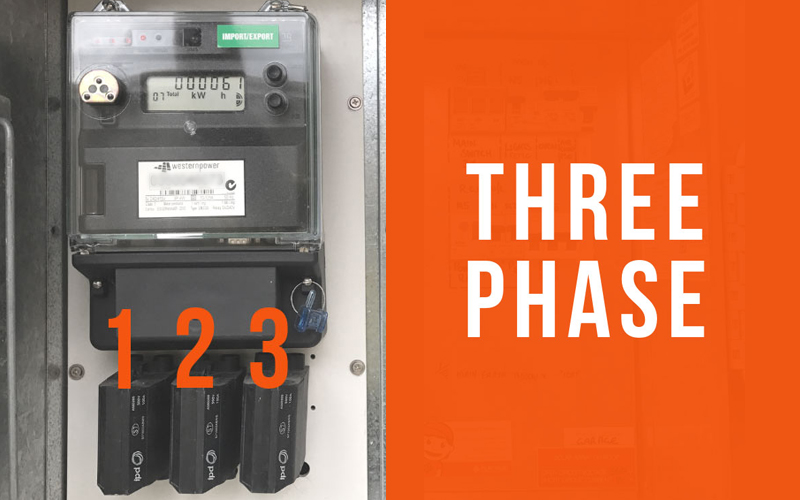

Three Phase - Solar Review

Image: Three-Phase supply fuse example.

5: Point, Click, Send

The camera on your smartphone is a wonderful tool. Take a photo of either your;

  • Electrical switchboard/ fuse box.
  • OR electricity meter.
  • Even better, both of the above.

Send it to a knowledgeable professional within your region. Electrical characteristics of single-phase or 3-phase power supplies are common within areas. If you’re located in Perth or Bunbury region of Western Australia, we can assist, contact sales support.

Extra assistance: Struggling to find someone to ask or send the image to? Try posting your snapshot to your social media feed proposing the single-phase or 3-phase question.

Single Phase or 3-Phase - Take a photo Solar Review

6: Existing Appliance Identity

Identify if you have any existing 3-phase appliances in your house. If your home possesses an extra powerful 3-phase air conditioner or a 3-phase pump of some kind, then the only way these fixed appliances will operate is with a 3-phase power supply. Therefore, you have 3-phase power.

Level up your knowledge before buying. Don’t be fooled by higher watt class solar panels being so-called “better technology”. With no standard solar module sizes anymore, often higher Watt panels are made bigger and heavier. Due to this cumbersome nature,  these panels aren’t always ideal for residential installation types. As wafer sizes have been steadily increasing, gauging module technology by cell size can be a little deceiving also. Cut through the sales spin and read Reasons to avoid installing higher-power solar panels on your home.

Live in Perth, Western Australia? If you’re looking for a solar or battery energy system and trying to decide whether you have a single-phase or 3-phase electricity supply, we can help! And we’d love the opportunity to provide you with a competitive express quote.
