Applies to: Enphase IQ Gateway/Envoy using the Enphase Enlighten mobile app.
Estimated time: 5–10 minutes
You’ll need: Enlighten app (signed in), physical access to the gateway, your home Wi‑Fi name & password.
Contents
Quick start (TL;DR)
- Enable AP Mode on the gateway: Press the IQ Gateway AP Mode button once; the AP Mode light turns green.

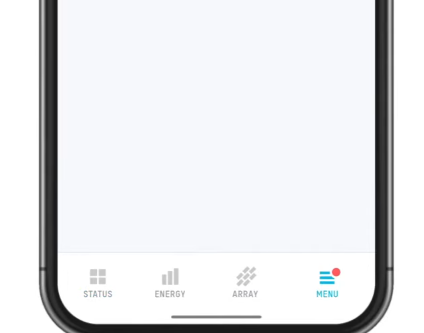

- In the Enphase Enlighten app go Menu → System → Devices → Gateway → Configure Wi‑Fi.
- On your phone, join the temporary Wi‑Fi ENVOY_XXXXXX.
- Return to the app → tap Connect → select your home Wi‑Fi → enter password → Join.
- Success indicator: the Gateway Wi‑Fi light turns solid.
Step‑by‑step
1. Put the IQ Gateway in AP Mode

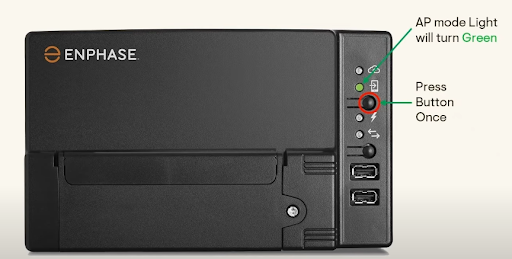

- On the gateway, press the AP Mode button once.
- Confirm the AP Mode LED turns green—this broadcasts the temporary Wi‑Fi you’ll use for setup.

2. Open Enlighten and find the Wi‑Fi config

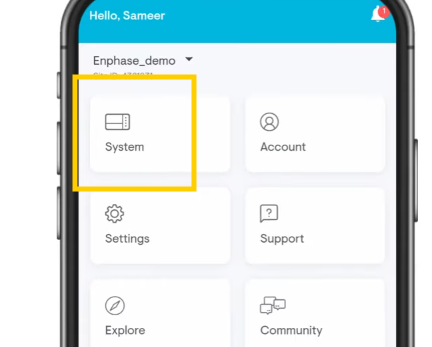

- In Enphase Enlighten, go Menu → System → Devices → Gateway → Configure Wi‑Fi.



3. Join the gateway’s temporary Wi‑Fi
- In your phone’s Wi‑Fi settings, select ENVOY_XXXXXX.


4. Tell the gateway your home Wi‑Fi

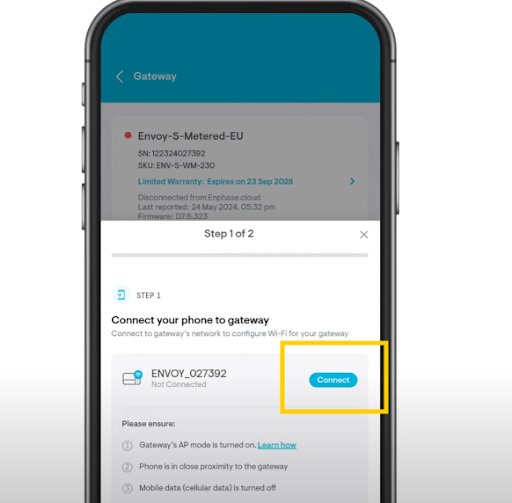

- Return to the app and press Connect.

- When prompted, select your home Wi‑Fi, enter the password, then tap Join.
- Done: The Gateway Wi‑Fi LED turns solid, indicating a successful connection.


Troubleshooting & tips
- Don’t see ENVOY_XXXXXX? Press the AP Mode button again and stand closer to the gateway.
- App doesn’t connect after you join ENVOY_XXXXXX: Manually switch back to the Enlighten app, then tap Connect again. Some phones auto‑switch away from networks without internet.
- Password errors: Re‑enter your home Wi‑Fi password carefully.
- Band compatibility: Many gateways prefer 2.4 GHz Wi‑Fi. If your router combines 2.4/5 GHz under one name and connection fails, try a dedicated 2.4 GHz SSID or temporarily split the bands.
- Still failing? Repeat the sequence from AP Mode → Join ENVOY_XXXXXX → Connect in app.
Frequently asked questions
The Enphase Enlighten app: Menu → System → Devices → Gateway → Configure Wi‑Fi.
The gateway broadcasts ENVOY_XXXXXX during AP Mode.
The Gateway Wi‑Fi light turns solid after you Join your home network.
